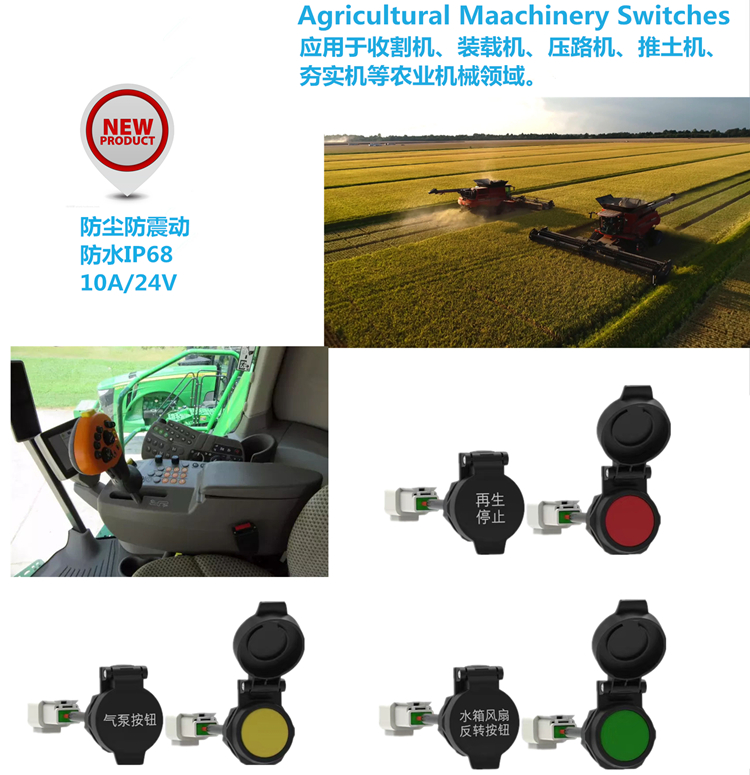

25mm收（shōu）割機開關

25mm Pushbutton Switches

SPECIFICATIONS

SAFETY/QUALITY APPROVALS

SGS/REACH/TUV:IP68/IK08

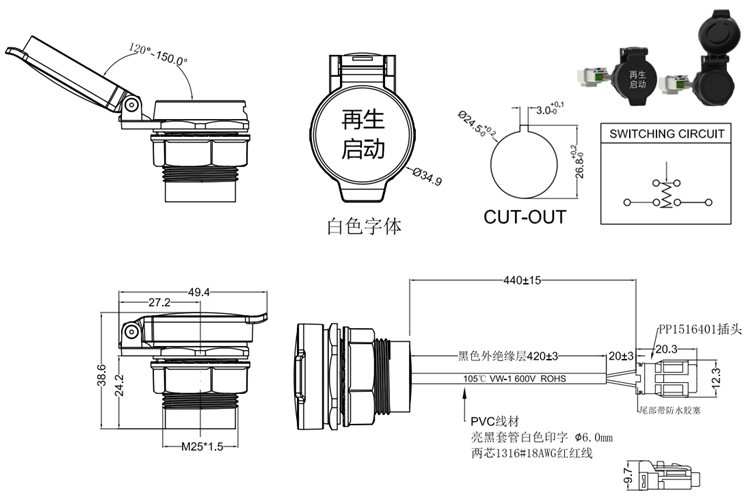

Panel Thickness: Ø24.50mm

Contact Rating: 10A/24V DC
Mechanical Life: 100,000 cycles

Electrical Life: 50,000 make-and-break cycles at full load

Operating Pressure: 500gf±200gf

Torque: 5~14Nm

Travel: About 2.8mm

Function: (ON)-OFF
Contact Resistance: 50 mΩ MAX.
Insulation Resistance: 100MΩ MIN

Dielectric Strength: 3,000 Vrms @sea level.
Operating Temperature: -20°C to 85°C

Ingress Protection: IP68

MATERIALS

BASE : PBT,

ACTUATOR : PA66;

BUTTON:Silicone;

INNER ASSEMBLY : PA66.

SPRING : Spring steel.

SEALING : Sillicone.

TERMINAL : Brass,with silver or gold plated.

HEX NUT : PA66
